Output¶

This page describes the files and directories produced by TaxTriage. All paths are relative to --outdir (your specified output folder).

Most Important Files¶

These are the outputs you should review first after a successful run:

Directory Structure¶

<OUTDIR>/
├── report/
│   ├── all.odr.pdf                       # Combined Organism Discovery Report
│   ├── <sample>.odr.pdf                  # Per-sample ODR
│   ├── all.odr.html                      # Multi-sample interactive comparison report
│   ├── all.odr.txt                       # Combined microbial sheet
│   ├── all.odr.xlsx                      # Combined annotated workbook (incl. VF/AMR + Metadata)
│   ├── <sample>.odr.txt                  # Per-sample microbial sheet
│   ├── <sample>.odr.xlsx                 # Per-sample annotated workbook
│   ├── export_data/                      # Combined data export (--export_data): report tables as xlsx/csv
│   ├── multiqc_report.html               # MultiQC report
│   └── combined_krona_kreports.html      # Krona plot
│
├── alignment/
│   ├── <sample>.<sample>.dwnld.references.bam      # Post-alignment BAM (+ .csi index)
│   ├── <sample>.histo.txt                          # Coverage histogram
│   ├── <sample>.paths.json                         # Per-sample data backing the interactive report
│   └── <sample>_removal_stats_by_taxid.xlsx        # Conflict / LCA read-removal stats per taxid
│
├── samtools/
│   └── <sample>.txt                      # Per-reference coverage
│
├── bcftools/                             # (--reference_assembly only)
│   ├── <sample>.<taxid>.vcf.gz          # Variant calls
│   └── <sample>.consensus.fa            # Consensus assembly
│
├── fastqc/                              # (Illumina)
│   ├── *_fastqc.html
│   └── *_fastqc.zip
│
├── fastp/                               # (--enable_fastp, Illumina)
│   └── *.fastp.html / *.fastp.json / *.fastp.log
│
├── fastplong/                           # (--enable_fastp, ONT/PacBio)
│   └── *.fastplong.html / *.fastplong.json / *.fastplong.log
│
├── nanoplot/                            # (ONT)
│
├── mergedkrakenreport/
│   └── krakenreport.merged_mqc.tsv      # Top hits per sample from Kraken2
│
├── top/
│   ├── <sample>.top_report.tsv          # Per-sample top hits table
│   ├── <sample>.toptaxids.txt           # Top taxids selected for alignment
│   └── <sample>.topnames.txt            # Top organism names
│
├── download/
│   └── <sample>.dwnld.references.fasta  # Downloaded reference sequences
│
└── pipeline_info/
    ├── execution_report.html
    ├── execution_timeline.html
    ├── execution_trace.txt
    ├── pipeline_dag.svg
    └── software_versions.yml

Output File Details¶

FastQC (fastqc/)¶

Standard FastQC outputs for Illumina samples:

• *_fastqc.html - Interactive quality metrics report
• *_fastqc.zip - Archived report with raw data

Note: FastQC in the MultiQC report shows untrimmed reads and may contain adapter sequences.

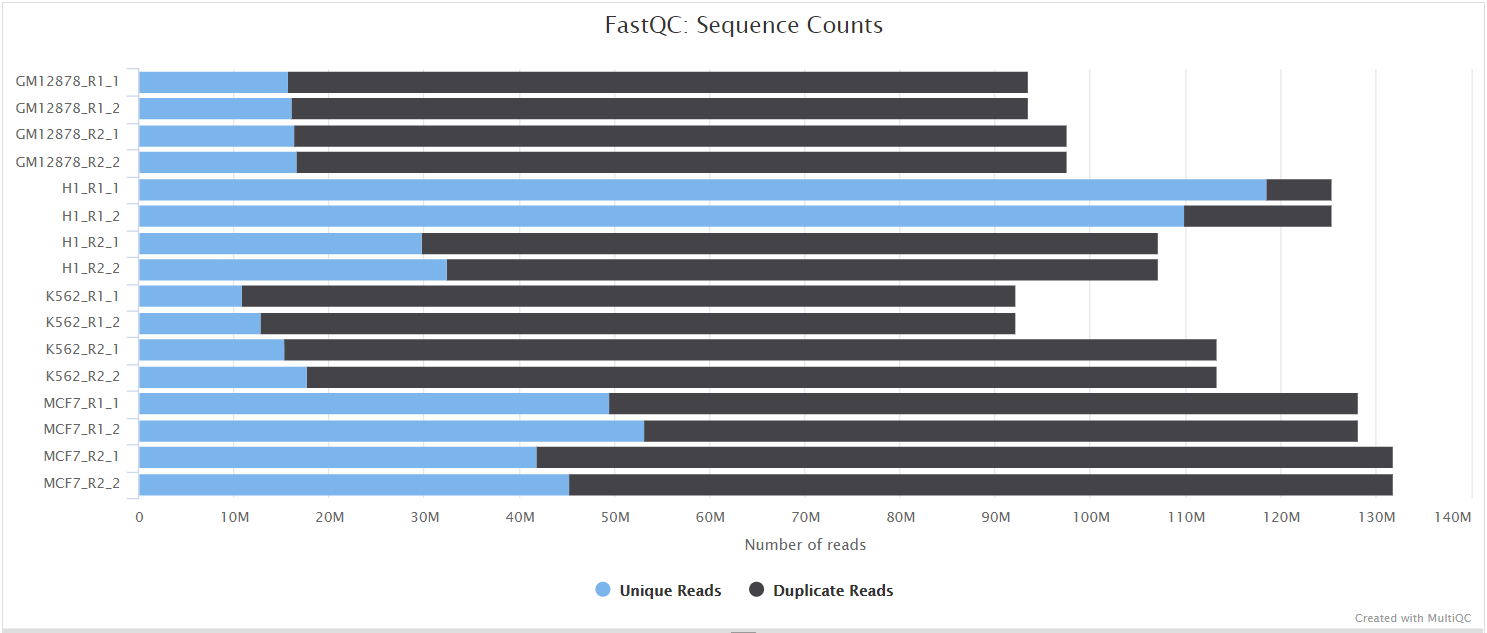

Sequence count distribution:

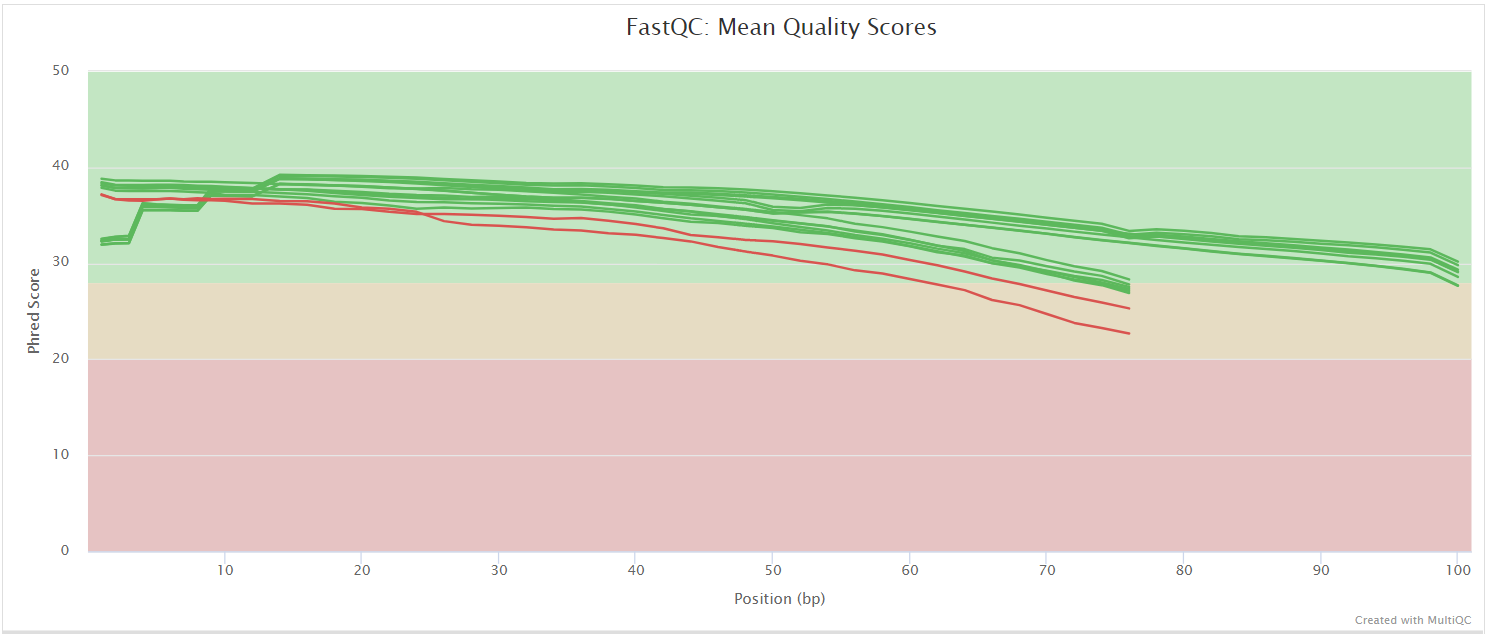

Mean quality scores:

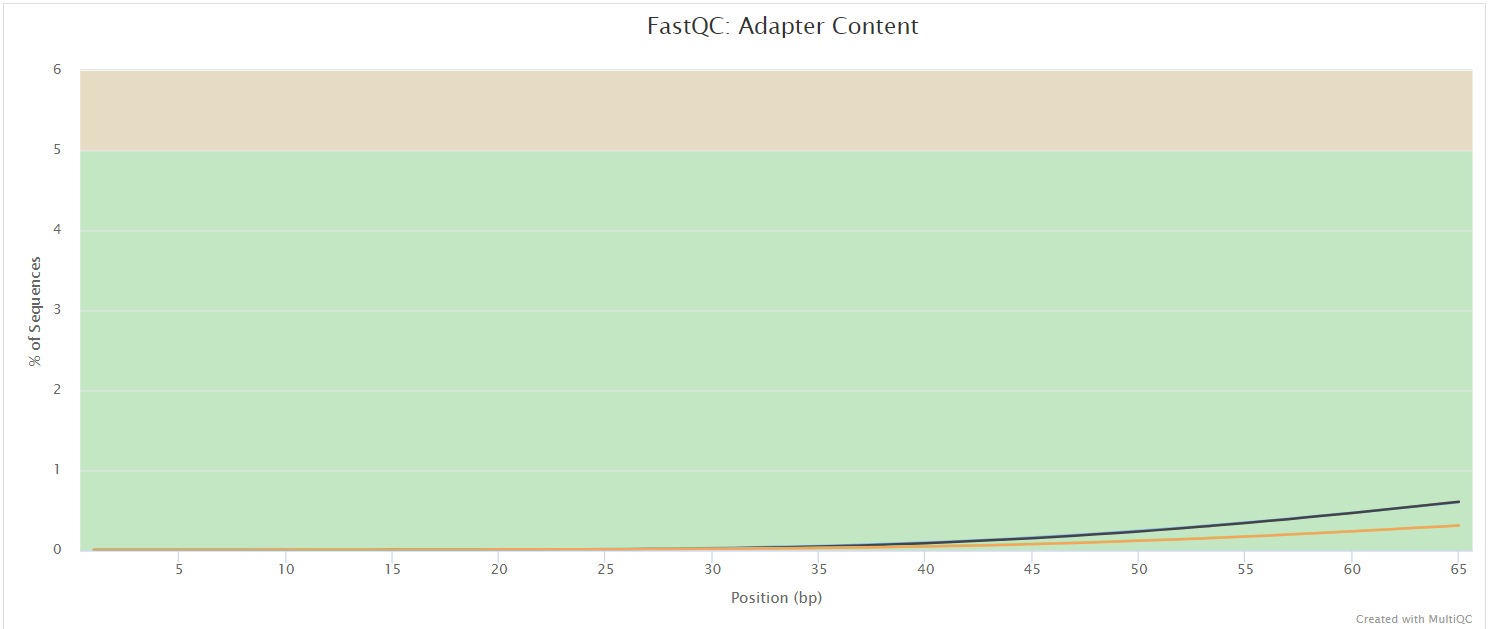

Adapter content:

MultiQC (report/multiqc_report.html)¶

Aggregated report across all samples, including:

• FastQC / NanoPlot summaries
• Trim Galore (cutadapt) trimming stats (for samples with trim=TRUE)
• fastp / fastplong filtering stats (only with --enable_fastp; the section is omitted otherwise)
• Alignment statistics from samtools
• Kraken2 classification summary
• Software version traceability

Organism Discovery Report PDF¶

The main deliverable. Example report:

Each table row is one detected organism with the following key columns:

See TASS Scoring for full definitions of each metric.

Interactive Comparison Report (report/all.odr.html)¶

A self-contained, browser-based report that compares every sample in the run side by side, with a TASS heatmap, summary table, coverage/sunburst/explore views, a per-sample-type TASS cutoff slider, species/genus roll-up views, whole-sample QC flags, and a built-in Export-to-PDF button. No server is required - the file can be emailed or hosted as-is. See the dedicated Interactive Report page for a full walkthrough.

Samples flagged by a QC rule (--report_flag_*, or rules added in the report itself) are marked here, not removed: the file still carries every sample's data, so clearing a rule brings a hidden sample straight back. See Interactive Report → Sample QC flags.

Combined Data Export (report/export_data/) - Optional¶

Written only with --export_data. Holds the interactive report's tables as spreadsheets - detections, per-sample summary, cross-sample organism rollup, coverage, VF/AMR, novelty, run metadata, geography and in-silico - so the data is usable without opening the HTML. The shape depends on --export_data_formats: a single taxtriage.combined.xlsx (a sheet per table), taxtriage.wide.xlsx / .csv (everything joined on Specimen ID × Organism), one CSV per table, taxtriage.stacked.csv, and/or taxtriage.pivot.* (detections crosstabbed against a metadata field). See CLI Parameters → Combined Data Export.

Microbial Sheet (report/<sample>.odr.txt)¶

Tabular plain-text version of the ODR data. Contains all organisms including commensals and potentials regardless of --show_commensals / --show_potentials flags.

Annotated Workbook (report/<sample>.odr.xlsx)¶

Excel version of the same data with VF/AMR protein-annotation columns (when annotation is enabled) and an appended Metadata sheet describing the run.

BAM Files (alignment/<sample>.<sample>.dwnld.references.bam)¶

Post-alignment BAM files (with a .csi index) for all top-hit organisms. Can be viewed in IGV or any BAM-compatible viewer.

Per-sample JSON (alignment/<sample>.paths.json)¶

Structured per-sample results that back the interactive comparison report. These are the preferred input to make_report.py.

Read-removal Stats (alignment/<sample>_removal_stats_by_taxid.xlsx)¶

Per-taxid breakdown of how many reads were removed during conflict resolution, including the LCA-aware (species/genus) accounting used when scoring closely related strains. See TASS Scoring.

Coverage File (samtools/<sample>.txt)¶

Per-reference coverage summary produced by samtools coverage for each top-hit organism.

Variant Files (bcftools/) - Optional¶

Available when --reference_assembly is enabled:

• VCF files with variant calls per taxid
• Consensus FASTA assembled from the reference + variants

Pathogen Sheet¶

The pipeline uses a curated pathogen annotation sheet with ~1,600 taxa at assets/pathogen_sheet.csv.

Updating the Pathogen Sheet¶

You can modify the sheet or provide your own with --pathogens. Required columns:

1. name - Organism name (doesn't need to match NCBI exactly)
2. taxid - NCBI taxonomy ID
3. general_classification - Primary, Opportunistic, Potential, or Commensal (see Microbial Categories for definitions, site-aware resolution, and interpretation)
4. high_consequence - TRUE/FALSE - always shown in PDF regardless of TASS score

Optional but recommended:

• pathogenic_sites - Comma-separated body sites where this organism is pathogenic
• commensal_sites - Sites where this organism is commensal (overrides general classification for those sites)
• assembly_accession - Curated GCF_* / GCA_* assembly to pin for this organism. When set, it is downloaded directly (accession-first) instead of the pipeline picking an assembly by taxid; see Assembly Selection Order. Auto-generated during the database build and kept as the last column; leave blank to let TaxTriage choose.

To request new organisms be added to the default sheet, open a GitHub issue.

Working Directory (work/)¶

Nextflow stores all intermediate process files in work/. These are not final outputs but are used when resuming a pipeline with -resume.

To free disk space after a successful run:

rm -rf work/

⚠️ Deleting work/ prevents future -resume from reusing cached results.
