Pipeline Modules¶

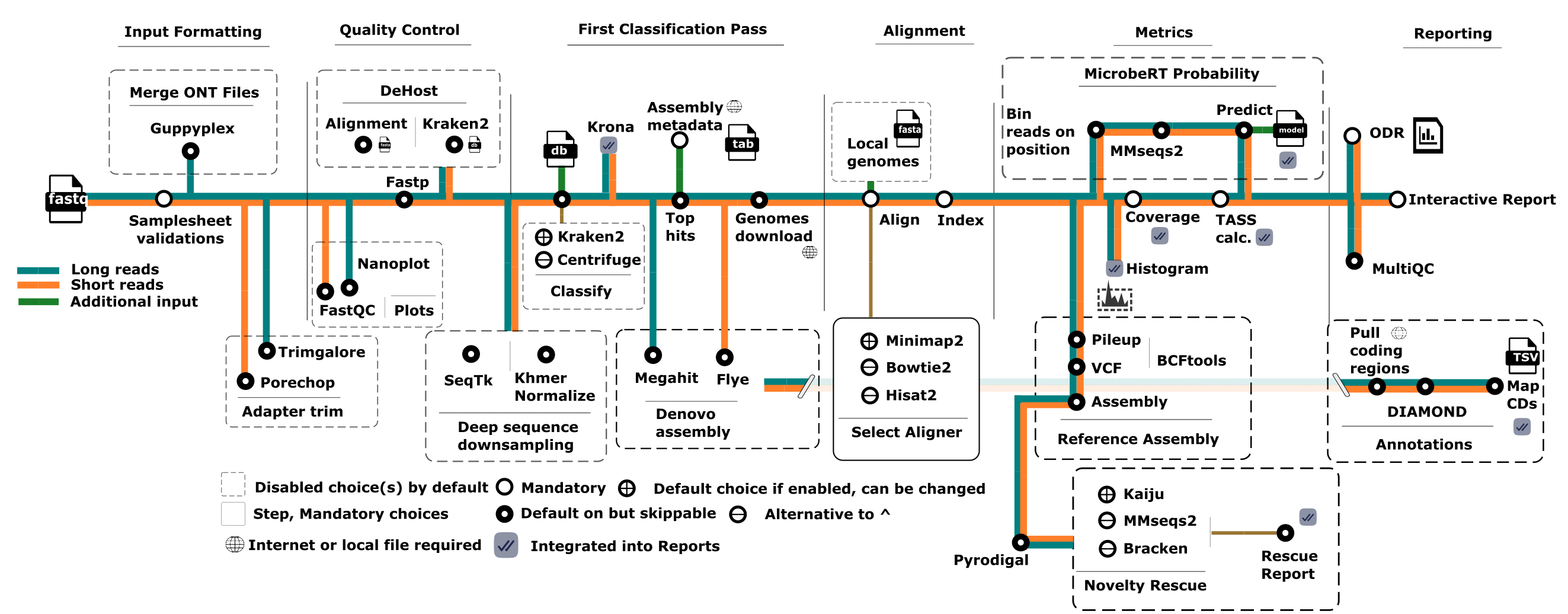

This page describes each step in the TaxTriage workflow in execution order - what it does, which tool is used, and what it produces.

Step −1: SRA / ENA Retrieval (Optional)¶

Modules: SRA_RESOLVE, SRA_FETCH_ENA, SRA_FETCH_SRATOOLS Trigger: any fastq_1 value (samplesheet column or --fastq_1) that is an accession rather than a path

Runs before everything else, only when accessions are present.

1. SRA_RESOLVE batches every accession into one lookup against the ENA Portal API (falling back to NCBI eutils), expanding experiment/sample/project accessions into their child runs and recording each run's FASTQ URLs, md5s, instrument platform and paired-end layout.
2. SRA_FETCH_ENA downloads ENA's pre-split fastq.gz files and verifies them against the published md5.
3. SRA_FETCH_SRATOOLS handles runs ENA does not host, via prefetch + fasterq-dump --split-3.

Downloaded reads enter the pipeline as ordinary samples, so every step below is unchanged. Files are cached under <outdir>/sra_downloads/ (or --sra_cache_dir) and reused on later runs instead of being downloaded again.

See Samplesheet → SRA / ENA Accessions.

Step 0: Pre-Aligned Input Preparation (Optional)¶

Modules: PREPARE_BAM, BAM_CONSENSUS Trigger: any bam value (samplesheet column or --bam)

Runs in place of read processing, only for samples that arrive pre-aligned.

1. PREPARE_BAM normalises the container to BAM (CRAM is decoded, SAM is compressed, BAM is left alone), coordinate-sorts it unless the @HD SO: header already says it is sorted, writes a .csi index, and emits a primary-read count. --bam_minmapq applies a samtools view -q filter here if you asked for one.
2. BAM_CONSENSUS runs only when no --reference_fasta was supplied, calling samtools consensus -a off the alignment so sourmash sketching, the shared-window conflict report and the ANI matrix have bases to work with. References whose consensus is almost entirely N are dropped.

The resulting [meta, bam, csi] tuple has the same shape as the aligner's own output, so everything downstream is unchanged. A recovered consensus FASTA is fuzzy-matched against the assembly summary exactly like a user-supplied reference, producing the accession → taxid map match_paths.py needs.

Pre-aligned samples skip Steps 1 through 5 entirely and are excluded from reference download.

See Pre-Aligned Input.

Step 0: Subsampling (Optional)¶

Tool: Khmer Normalization or Seqtk Parameter: --downsample (Khmer) or --subsample <N> (Seqtk)

Reduces each sample to N reads before any downstream processing. Useful for a fast "triage" analysis when input datasets are very large.

Step 1: Quality Control - Part 1¶

Illumina¶

Tool: FastQC
Parameter: --skip_plots to disable

Generates quality score distributions, adapter content plots, and per-base quality reports. These are the default read-QC plots in the MultiQC report (fastp is off by default, see Step 2b).

Oxford Nanopore¶

Tool: pycoQC (requires --sequencing_summary) for Illumina, NanoPlot for ONT

Generates read length/quality plots from raw ONT output. NanoPlot is run on the raw reads. pycoQC uses the sequencing summary file for additional detail.

Step 2: Adapter Trimming¶

Illumina¶

Tool: Trimgalore
Parameter: samplesheet trim column (--trim for --fastq_1 runs); --skip_trimming turns it off for all samples

Removes adapter sequences from paired or single-end Illumina reads.

Oxford Nanopore¶

Tool: Porechop
Parameter: samplesheet trim column (--trim for --fastq_1 runs); --skip_trimming turns it off for all samples

Removes adapter sequences from ONT reads.

Step 2b: Quality Filtering with fastp / fastplong (Optional, off by default)¶

Tool: fastp (Illumina), fastplong (ONT / PacBio)
Parameters: --enable_fastp, --minq <N> (fastplong minimum quality, default 7)

fastp is disabled by default. Pass --enable_fastp to run it after adapter trimming and before classification. A sample fastp cannot process keeps its unfiltered reads instead of dropping out of the run.

--skip_fastp has been removed. It is no longer needed because fastp is off unless requested; passing it only prints a warning.

Step 3: Host Removal (Optional)¶

Tool: Minimap2 or Kraken2 (with --filter_kraken2) Parameters: --genome, --remove_reference_file, --min_mapq_host, --filter_kraken2 <k2_db>

Reads that align to the host reference (e.g., human genome) are removed. Unclassified (non-host) reads are retained for classification.

Studies show Minimap2 has a slightly lower false-negative rate than Bowtie2 for host depletion. See PMC9040843 and s41467-021-26865-w.

Step 4: Metagenomics Classification¶

Tool: Kraken2 (default) or Centrifuge
Parameters: --db, --k2_confidence, --skip_kraken2, --centrifuge

Each read is classified against the Kraken2 (or Centrifuge) database. Results are summarized in a Kraken2 report and visualized as interactive Krona plots - the most important early output for understanding abundance from a metagenomics perspective.

⚠️ Always consider the limitations of your database. Organisms absent from the database cannot be classified. See available databases.

Step 5: Top Hits Assignment¶

Parameters: --top_hits_count, --top_per_taxa, --pathogens, --add_irregular_top_hits

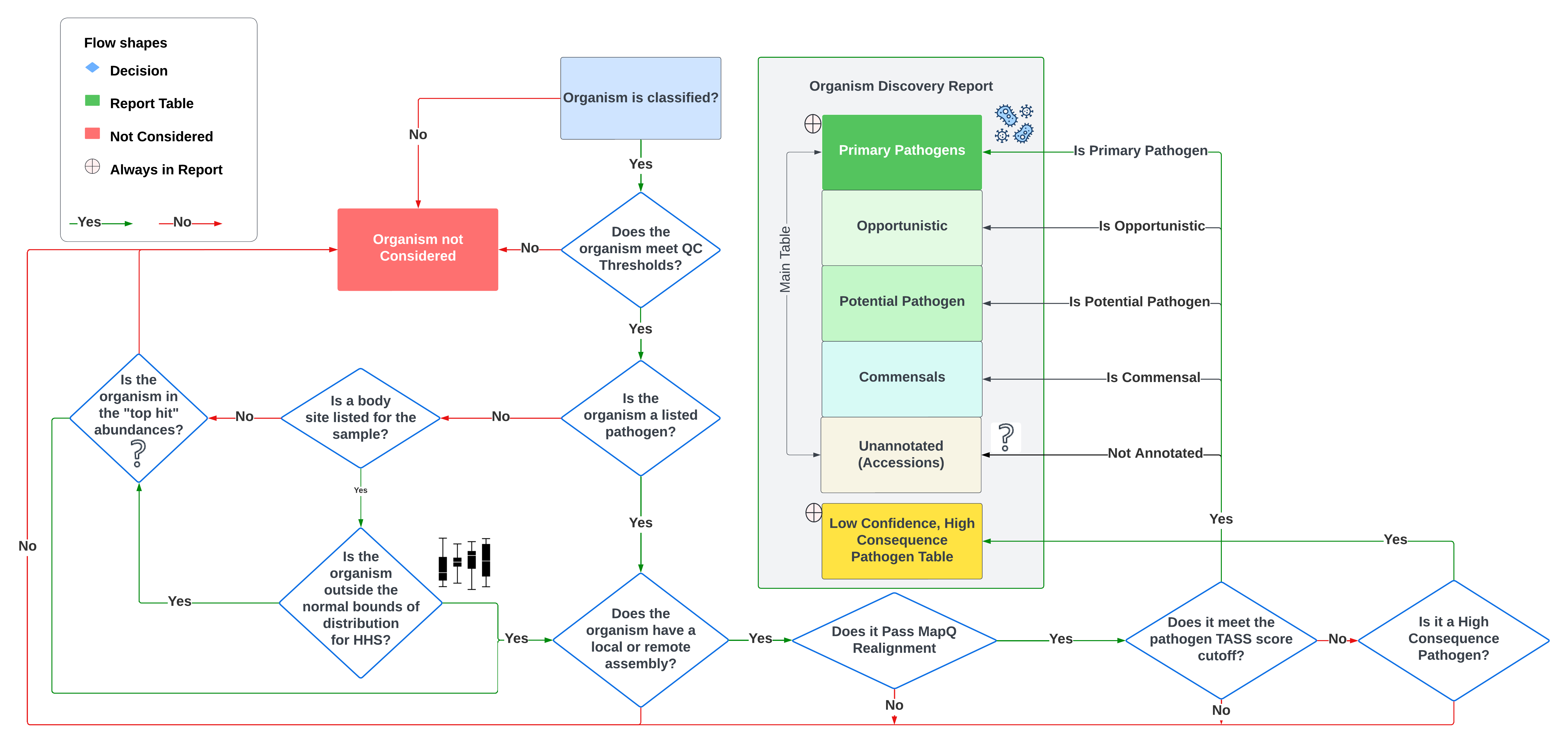

Not all classified organisms are aligned - only "top hits" proceed to alignment. The selection follows this decision tree:

Top hits include:

• Any organism annotated in the pathogen sheet (regardless of abundance)
• The top N organisms per taxonomic rank (controlled by --top_hits_count and --top_per_taxa)
• Organisms with irregular HMP abundance distributions (if --add_irregular_top_hits is set)

Step 6: Reference Preparation¶

Parameters: --assembly, --reference_fasta, --organisms

Reference genomes for all top hit organisms are obtained:

• Default (internet): Downloaded from NCBI FTP using the assembly summary file.
• Offline: Provided via --reference_fasta (local FASTA) or --assembly (local assembly summary).

Which assembly is chosen per organism follows the Assembly Selection Order: a curated assembly_accession from the pathogen sheet is used first (accession-first), otherwise the best local taxid match is picked by priority tier (representative → reference → complete genome → other), preferring RefSeq over GenBank on ties.

A FASTA index is built for Bowtie2 (Illumina) at this stage.

Step 7: Alignment¶

Illumina¶

Tool: Minimap2 (default), Hisat2, Bowtie2 (with --use_bt2)

ONT / PacBio¶

Tool: Minimap2

All Kraken2-classified reads (or all raw reads if --skip_kraken2) are aligned to the reference genomes. Only the best-scoring alignment per read is currently retained.

Note: Minimap2 is used for both data types in the host removal step, but BWA-MEM2/Bowtie2 is used for Illumina in the classification alignment step, as Minimap2 underperforms for Illumina metagenomics alignments (PMC9040843).

Step 8: Alignment Statistics¶

Tool: samtools
Output: samtools/<sample>.txt (coverage), samtools/<sample>.tsv (depth), alignments/<sample>.histo.txt (histogram)

Per-position depth and breadth of coverage statistics are generated for each alignment. These feed directly into the TASS confidence score.

Step 9: Reference Assembly (Optional)¶

Tool: MEGAHIT (Illumina) or FLYE (ONT)
Parameters: --reference_assembly, --use_denovo, --get_variants, --use_megahit_longreads

Two optional assembly modes:

• De novo assembly (--use_denovo): Assembles contigs directly from reads.
• Reference-based assembly (--reference_assembly): Aligns reads to top hit assemblies, generates VCF (variant) files and consensus FASTA.

Output: bcftools/<sample>.<taxid>.vcf.gz and bcftools/<sample>.consensus.fa

Step 10: Organism Discovery Report (ODR) Generation¶

Tools: MultiQC, custom Python scripts (create_report.py, match_paths.py)

The final reporting stage combines all intermediate data:

• MultiQC (report/multiqc_report.html) - raw alignment stats, FastQC, version info
• Organism Discovery Report PDF (report/<sample>.organisms.report.pdf and report/all.organisms.report.pdf) - confidence-ranked organism table for each sample and combined across all samples
• Interactive Multi-Run Comparison Report (report/all.comparison.report.html) - multi-sample comparison
• Krona Plot (report/combined_krona_kreports.html) - interactive radial abundance visualization
• Microbial Sheet (report/<sample|all>.report.txt) - tabular output of all TASS metrics

TASS Confidence Scoring¶

Parameters: All --*_weight and --*_threshold parameters

After alignment, each organism receives a TASS score (0 - 1). Higher scores indicate greater confidence that the organism is genuinely present. The score combines:

• Breadth of coverage (genome coverage fraction)
• Gini coefficient (inequality of depth distribution)
• Minhash false-positive penalty
• MAPQ score (optional)
• HMP percentile (optional)

See TASS Scoring for the full mathematical methodology.

VF/AMR Annotation (Optional)¶

Tool: Denovo Assembly, DIAMOND Parameters: --annotate, --annotate_proteins <fasta>, --annotate_meta <annotate_meta>, --pident

Assembled contigs can be annotated for virulence factors, transporter, and antimicrobial resistance genes using DIAMOND. The --annotate_proteins parameter accepts a FASTA of protein sequences to search against, and --annotate_meta accepts a tabular metadata file with annotations to add to the report.

MicroBERT Module (Optional)¶

Parameter: --microbert <model_dir>, --microbert_maxlen

As of September 2025, TaxTriage supports AI/ML-based taxonomic predictions via MicroBERT. The module:

1. Bins post-alignment reads by position and MAPQ
2. Clusters sequences with MMSeqs2 and selects representatives
3. Runs MicroBERT (CPU only) on downsampled sequences
4. Maps cluster member probabilities back to taxids
5. Adds a MicroBERT column to the TASS score table

Supported Models (hosted on Hugging Face)¶

Downloading a Model¶

pip install huggingface_hub
hf download jhuapl-bio/microbert --local-dir ./microbert
# or
git clone https://huggingface.co/jhuapl-bio/microbert

Example Run¶

nextflow run main.nf -profile test,docker -resume \
  --microbert microbert/taxonomy/nucleotide-transformer-v2-50m-multi-species-taxonomy \
  --compress_species \
  --microbert_maxlen 300

Note: Use --compress_species because MicroBERT models are trained only down to the species level.

See the MicroBERT paper at 10.1101/2025.08.21.671544 for details.

Debugging Individual Steps¶

When a step fails, you can inspect and rerun the exact command:

1. Note the working directory hash from the Nextflow log:

   [28/5412a9] process > NFCORE_TAXTRIAGE:TAXTRIAGE:KRAKEN2_KRAKEN2 (longreads)


2. Navigate to that directory:

   cd work/28/5412a9<tab-complete>


3. View the command output:

   cat .command.out
   cat .command.err


4. Rerun the command:

   bash .command.sh


Script paths for custom Python/bash tools are typically at ../../../bin/<script>.py.
